In a ucp200 series pillow block units, Pressed Steel Cage is the cage, which spaces the rolling elements and keeps them from touching each other. The grade is low-carbon sheet steel, two-piece riveted or ribbon type, rolling-element guided; it is magnetic, and its usable service range is not the limiting element; the lubricant and the ring heat stabilization decide. This page covers what the material changes about the bearing, the limits it brings with it, and the sizes supplied.

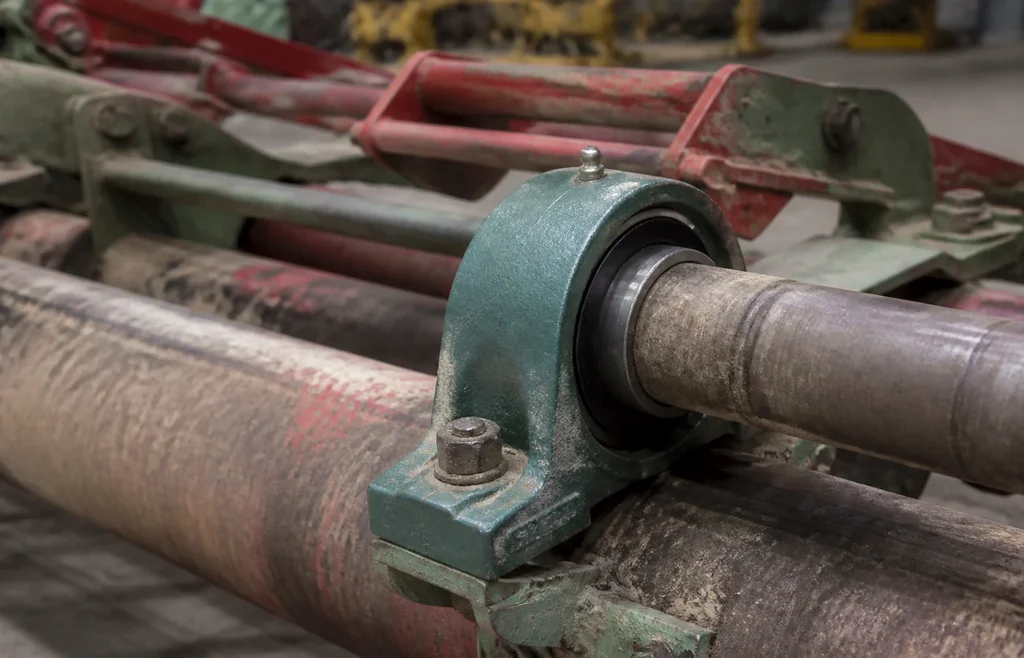

Why Pressed Steel Cage for UCP200 Series Pillow Block Units
The standard cage of volume bearing production: light, cheap, tolerant of temperature and unaffected by the oils that age a polymer cage. In a ucp200 series pillow block units it is the cage, which spaces the rolling elements and keeps them from touching each other.
Pressed from sheet and guided by the rolling elements, it adds almost no mass and almost no cost, tolerates a wide temperature range, and is unaffected by lubricant chemistry. It is the default cage of the standard bearing ranges for good reasons.
Material Properties
| Grade designation | low-carbon sheet steel, two-piece riveted or ribbon type, rolling-element guided |
|---|---|
| Magnetic response | Magnetic |
| Service temperature | Not the limiting element; the lubricant and the ring heat stabilization decide |
| Corrosion characteristic | As the rings — it relies on the lubricant and the seals |
Service Limits
It is a light-duty cage: it is guided by the rolling elements and it is not intended for heavy vibration, high acceleration or sustained very high speed, which is where the machined brass cage takes over. In a heavily shocked application, cage damage rather than raceway fatigue is what ends the bearing.
What the Material Changes About the Bearing
The cage carries no load, so it changes no rating. What it changes is the operating envelope: the maximum temperature, the maximum speed, the tolerance of shock and vibration, the noise, and the compatibility with the lubricant. A bearing is very often limited by its cage long before its rings are in any danger, which is why the cage suffix in a designation is not a detail.
Sizes of UCP200 Series Pillow Block Units Available in Pressed Steel Cage
| Designation | Shaft bore d (mm) | Height to shaft centre H (mm) | Bolt hole centres J (mm) | Overall length L (mm) | Housing material |
|---|---|---|---|---|---|
| UCP201 | 12 | 30.2 | 95 | 127 | Grey cast iron |
| UCP202 | 15 | 30.2 | 95 | 127 | Grey cast iron |
| UCP203 | 17 | 30.2 | 95 | 127 | Grey cast iron |
| UCP204 | 20 | 33.3 | 95 | 127 | Grey cast iron |
| UCP205 | 25 | 36.5 | 105 | 140 | Grey cast iron |
| UCP206 | 30 | 42.9 | 121 | 165 | Grey cast iron |
| UCP207 | 35 | 47.6 | 127 | 167 | Grey cast iron |
| UCP208 | 40 | 49.2 | 137 | 184 | Grey cast iron |
| UCP209 | 45 | 54 | 146 | 190 | Grey cast iron |
| UCP210 | 50 | 57.2 | 159 | 206 | Grey cast iron |
| UCP211 | 55 | 63.5 | 171 | 219 | Grey cast iron |
| UCP212 | 60 | 69.9 | 184 | 236 | Grey cast iron |
| UCP213 | 65 | 76.2 | 197 | 254 | Grey cast iron |
| UCP214 | 70 | 79.4 | 210 | 266 | Grey cast iron |
| UCP215 | 75 | 82.6 | 217 | 275 | Grey cast iron |
| UCP216 | 80 | 88.9 | 232 | 292 | Grey cast iron |
| UCP217 | 85 | 95.3 | 248 | 310 | Grey cast iron |
| UCP218 | 90 | 101.6 | 260 | 328 | Grey cast iron |
