$3.76B Self-Lubricating Bushing Market Runs on Maintenance-Free Fits

Key Takeaways

• The global self-lubricating bearings market was estimated at USD 3.76 billion in 2024, indicating strong adoption of maintenance-free fits.
• Self-lubricating bushings eliminate relubrication by transferring solid lubricant such as PTFE or graphite to the shaft, not by holding grease.
• Plain bushings suit oscillating, low-speed, contaminated, or high-load duties, but have lower speed capability than rolling bearings.
• Shaft and housing fits for bushings are controlled by ISO 286 tolerances, not rolling bearing clearance classes.
• For a maintenance-free arrangement, send the shaft diameter, load, speed, temperature, contamination, and service interval to obtain a recommended material, clearance, and fit.

Application duty and constraints: where self-lubricating bushings fit

Self-lubricating bushings suit rotating, oscillating and linear sliding joints where scheduled relubrication is impractical, inaccessible, or unacceptable for contamination control. The global self-lubricating bearings market was estimated at USD 3.76 billion in 2024, with a projected 5.3% CAGR through 2034 according to gminsights.com, because these maintenance-free bushings remove grease points from the duty cycle.

Typical duty includes moderate radial load, slow to medium sliding velocity, short oscillation angles or intermittent rotation, and a shaft that cannot be hardened or ground to rolling-bearing raceway quality. Self-lubricating bushings tolerate edge loading, vibration, and light misalignment better than a rolling bearing, and they fit a smaller radial envelope because there is no rolling element set. The primary constraints are pv limit, operating temperature, chemical exposure, and available running clearance.

Why self-lubricating bushings versus rolling bearings and greased plain bearings

A greased bronze bushing works only where someone can reach it on a fixed interval. A rolling bearing works where loads and speeds are high enough to build an elastohydrodynamic film. A self-lubricating bushing sits between the two: it carries a lower pv than a rolling bearing but survives slow oscillation, fretting, and contamination that would kill a ball or roller bearing. The trade-off is wear. The bushing transfers a solid lubricant film onto the shaft, so life is governed by film depletion and wear depth, not fatigue spalling.

Selection criteria in priority order: load, speed, clearance, sealing, lubrication

For a self-lubricating bushing, selection follows this order:

• Load direction and magnitude: confirm radial load, axial thrust if any, and static peak. Compare against the material pv limit at the operating temperature.
• Sliding speed and oscillation frequency: low speed and oscillation keep the transfer film intact. High continuous rotation may exceed the material pv limit.
• Running clearance: select the installed bore-to-shaft clearance for the operating temperature, shaft and housing materials, and press-fit bore closure.
• Sealing: add lip seals or wipers only where abrasive dust or washdown fluid would score the transfer film; otherwise the bushing runs open.
• Lubrication method: choose a solid lubricant embedded in the bushing wall, a polymer liner, or a bronze-PTFE composite based on temperature and chemical resistance.

Selection walk-through from duty data to a bushing arrangement

Assume a conveyor idler pivot with a 25 mm shaft, 4 kN radial load, ±20° oscillation at 10 cycles per minute, ambient 60 °C, dusty but dry. The sliding velocity is low enough that pv is not the limit; the real limit is wear over the service interval. The shaft is left as turned 1045 steel with a 0.8 µm Ra finish. A bronze-PTFE or polymer self-lubricating bushing is selected with a H7 housing bore and h6 shaft tolerance so the installed running clearance stays positive after press fit closure. One end is located by a shoulder and retaining ring; the other end floats axially to allow thermal growth. No grease fitting is specified.

Mounting, shaft and housing fits, and installation notes

Press the bushing into a housing prepared to an ISO 286 H7 tolerance. For a rotating shaft, use h6 or h7; for a stationary shaft with an oscillating housing, let the housing bore carry the clearance and keep the shaft as a g6 or h6. Chamfer the housing entry and use an arbor press or a stepped mandrel—never hammer the bushing wall. If the bushing is flanged, retain it with a shoulder or retaining ring. Tapered adapter sleeves are rarely needed for cylindrical bushings, but where a split bushing or sleeve must be locked axially, a locknut and lockwasher give positive retention.

Lubrication, running-in, and condition monitoring

A self-lubricating bushing does not need a relubrication interval. The first few cycles deposit a transfer film onto the shaft. Do not add grease; it can block the solid lubricant from reaching the contact. Monitor wear by measuring radial clearance growth at a fixed shaft position. A 0.1 mm increase in diametral clearance on a 25 mm shaft is often the practical replacement limit. For higher-speed applications, also trend housing temperature and vibration at the bracket.

Failure modes that self-lubricating bushings prevent—or shift

Spalling and brinelling are rolling-contact fatigue and dent failures, so they do not occur in a sliding bushing. False brinelling from vibration does not occur because there is no rolling element to fret. Electrical erosion is also absent unless the joint passes current. The real failure modes are adhesive wear from an interrupted transfer film, creep of the bushing in the housing under heavy cyclic load, and contamination scoring from abrasive particles. Selecting a higher interference fit or a flanged bushing controls creep; sealing or a harder shaft controls scoring; re-evaluating pv and surface finish controls adhesive wear.

Send duty data for a recommended bushing arrangement

Send the shaft diameter, radial and axial load, oscillation angle or speed, operating temperature, contamination level, and expected maintenance-free interval. We will return a recommended bushing material, running clearance, shaft and housing fit, and retention method within 24 hours.

Specification Snapshot for a Maintenance-Free Bushing Joint

The global self-lubricating bearings market was estimated at USD 3.76 billion in 2024, according to gminsights.com, which reflects how widely these maintenance-free fits are being specified. For a new bushing arrangement, the design inputs reduce to a short engineering list.

• Bearing type: cylindrical plain bushing, flanged bushing, or thrust washer in sintered bronze, steel-backed PTFE-lined composite, or solid polymer.
• Bore range: 3 mm to 200 mm across the catalogued reference range.
• Shaft and housing fits: controlled to ISO 286, not to rolling bearing tolerance classes. Rolling bearing tolerance classes P0, P6, P5 and P4 apply only to adjacent rolling elements.
• Materials: GCr15/100Cr6 steel backing, PTFE liner, sintered bronze, AISI 316 stainless for corrosion resistance.
• Standards: ISO 9001 quality system; boundary dimensions and form per DIN and GB/T where applicable; running clearance derived from the shaft/housing fit.

Bearing Type Comparison: Plain Bushings vs Rolling Bearings

A self-lubricating bushing removes relubrication, but it is not the highest-speed option. The choice depends on the duty.

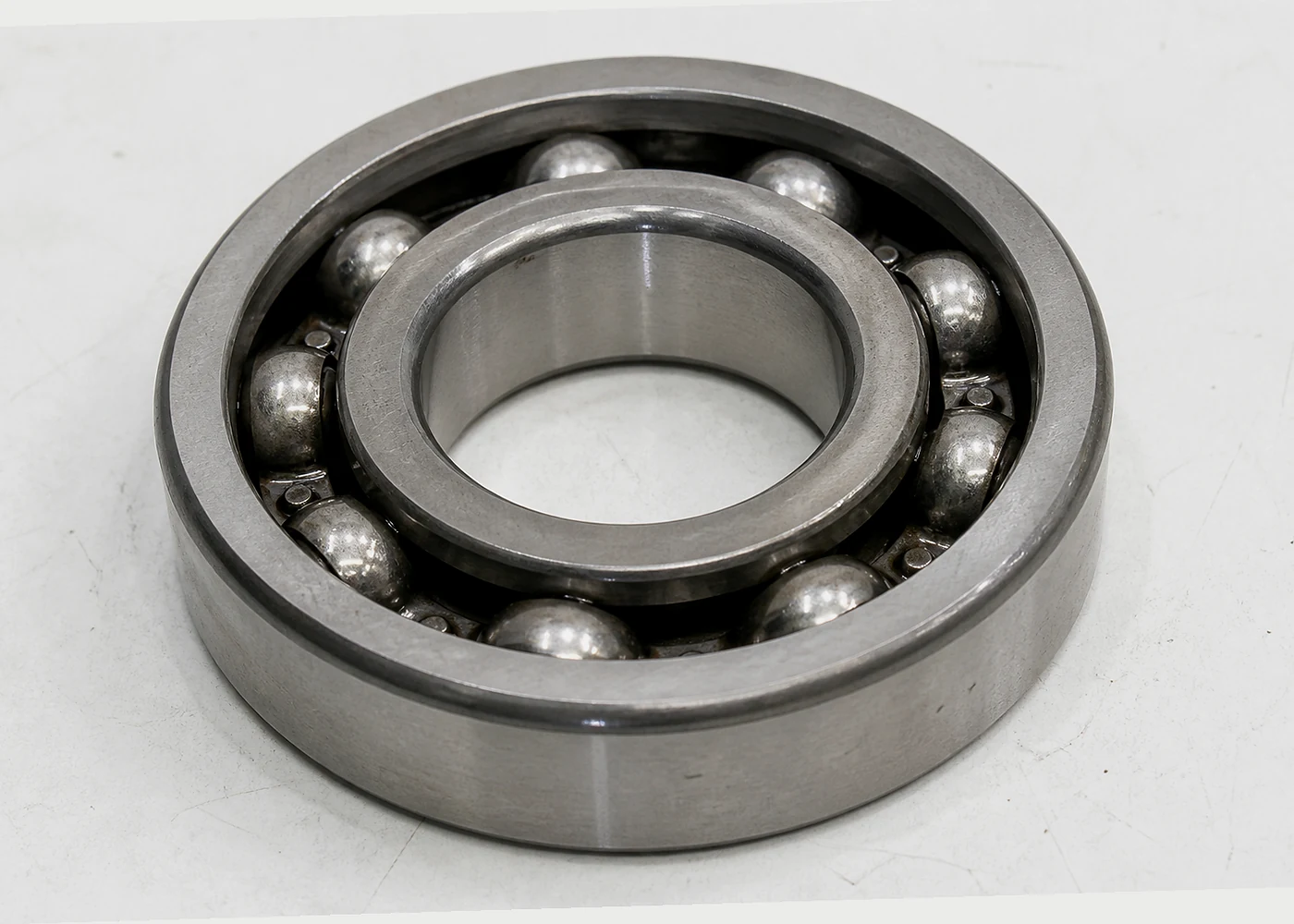

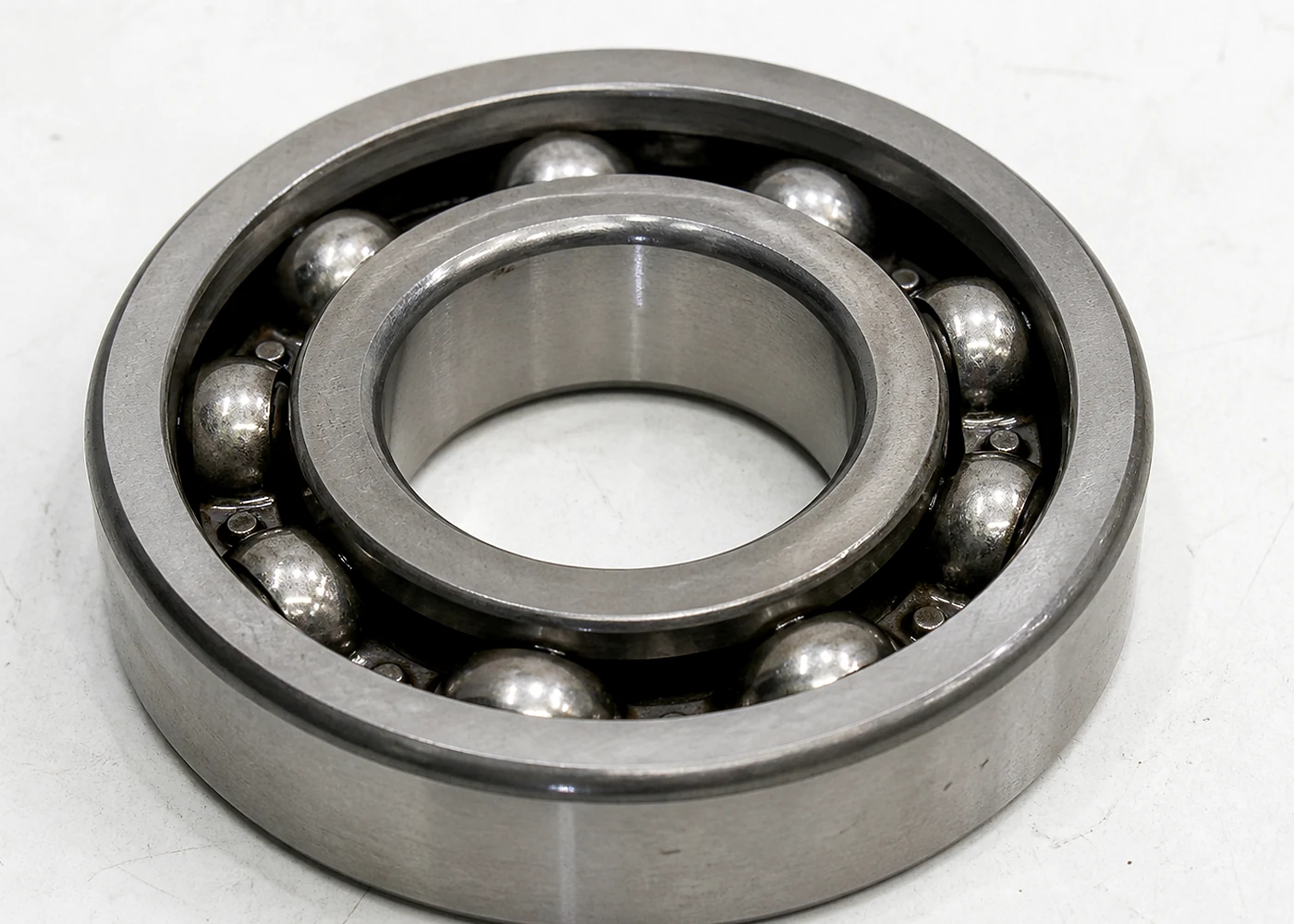

Deep groove ball bearings carry combined radial and axial load at higher speed, but need grease, seals, and a clean environment. Angular contact and tapered roller bearings handle combined heavy loads with controlled preload, but demand precise mounting and periodic lubrication. Self-aligning ball bearings tolerate shaft misalignment, but still rely on lubricant film. A plain self-lubricating bushing accepts oscillating or slow rotating motion, handles contamination better, and requires no relubrication, but its speed is limited by the pv value of the liner material and it cannot match the low friction of a rolling bearing at high rpm.

For rod-end positions that combine oscillation with misalignment, maintenance-free rod ends built to DIN ISO 12240-4 use the same transfer-film principle. The PHS Series Maintenance-Free Rod Ends are a related option when the joint must also carry spherical articulation.

Selection Inputs and Free Engineering Calculators

Before a bushing is released for production, confirm these parameters:

• Radial and axial load, including shock and vibration peaks.
• Shaft speed or oscillation angle; for continuous rotation, calculate the pv value.
• Operating temperature at the bushing wall, not just ambient.
• Contamination type: dry dust, washdown, chemical exposure.
• Expected maintenance-free interval in operating hours or cycles.

The site’s free engineering calculators cover bearing life, clearance and shaft/housing fit, and the size and material reference guides allow comparison across the 2,500+ catalogued options before the 24-hour quotation is requested.

Material and Process Entities Behind Maintenance-Free Performance

The transfer film that removes relubrication is a material property. In a steel-backed PTFE-lined bushing, the liner deposits a thin polymer film on the shaft; in a sintered bronze bushing, solid lubricant is dispersed through the bronze matrix. The steel backing is machined from through-hardening GCr15/100Cr6 or AISI 440C stainless where corrosion resistance is required, and the in-house process chain includes turning, heat treatment, and superfinishing for adjacent rolling bearing elements where a hybrid arrangement is used.

Next Step: Confirm the Arrangement from Duty Data

Send the shaft diameter, radial and axial load, oscillation angle or speed, operating temperature, contamination level, and expected maintenance-free interval. The application team will return a recommended bushing material, running clearance, ISO 286 shaft and housing fit, and retention method within 24 hours.
