Key Takeaways

• Bronze bushings suit slow, heavily loaded, oscillating or shock-loaded plain bearings because they conform and embed contaminants.
• Through-hardened steel bushings are stronger in thin-wall sections but require reliable lubrication and alignment to avoid scoring.
• Wrapped CuSn8, sintered bronze, JDB solid-lubricant bronze and SF-2 PTFE-lined composite cover different lubrication regimes.
• Specify d × D × L, shaft hardness, load direction and relubrication interval before choosing bushing material.
• Global bronze bushing demand is projected to grow from USD 1.2 billion in 2024 to USD 1.8 billion by 2033.

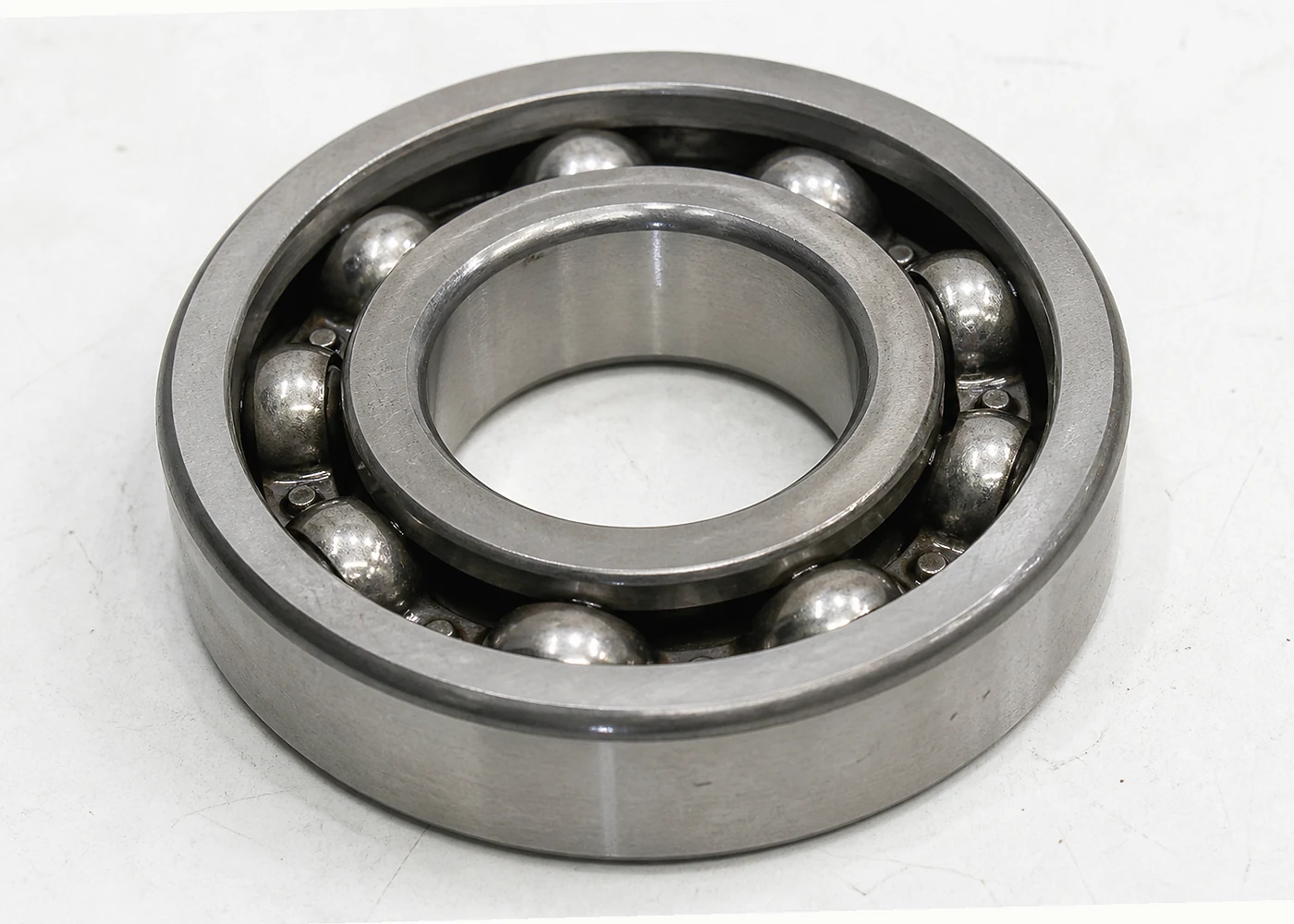

What Custom and Non-Standard Bearing Work Covers Here

Custom and non-standard bearing work at Bushing Bearings covers any change to a catalog rolling bearing or plain bushing that must be built to a controlled drawing instead of picked from stock. That includes modified boundary dimensions (d x D x B), bore type, tolerance class, radial internal clearance, cage material and design, seal or shield configuration, material grade, lubrication, and marking. OEM scope is drawing-specified; branded supply scope keeps the same engineering package but adds private-label marking and packaging. According to LinkedIn market data, the bronze bushing market is projected to rise from USD 1.2 billion in 2024 to USD 1.8 billion by 2033, at a 5.0% CAGR, which keeps custom bronze bushing work active in heavy-duty applications.

Modifiable Attributes

Engineers rarely start from zero. The standard item is the baseline, and the following attributes can be modified:

• Boundary dimensions — d x D x B outside ISO 15 or ISO 355 listings.
• Bore type — cylindrical, tapered, hexagonal, or keywayed.
• Tolerance class — P0, P6, P5, or P4 for rolling bearings; shaft/housing fit per ISO 286 for plain bushings.
• Internal clearance — C2, CN, C3, C4, or a specified value.
• Cage — steel, brass, or polyamide, with custom pocket or rivet design.
• Sealing — open, ZZ, 2RS, 2RZ, or non-standard lip and shield.
• Material grade — GCr15/100Cr6 steel, 440C or 316 stainless, bronze, PTFE-lined, Si3N4 or ZrO2 ceramic, hybrid.
• Coatings and surface treatment — black oxide, phosphate, passivation, or customer-specified.
• Grease and fill — type, grade, and fill percentage for sealed units.
• Outer ring geometry — flanged or extended outer rings.
• Marking — laser marking and private-label packaging.

What to Send Us

A complete request includes the following, but a drawing or sample alone is enough to start:

• Drawing or sample with all known dimensions and tolerances.
• Duty data: load (radial, axial, combined), speed, temperature, and environment (dust, water, chemical).
• Interchange part number or reference standard if any.
• Required tolerance class and internal clearance.
• Annual volume or projected usage.

The Workflow Step by Step

1. Technical review — engineering checks fit, load path, material, and manufacturability.
2. Quotation within 24 hours — confirmed against the drawing, not a blind catalog price.
3. Drawing approval — Bushing Bearings issues a production drawing for sign-off before tooling.
4. Tooling where required — cages, seals, flanges, or special bore tools are ordered or made in-house.
5. Sampling — first articles are produced and measured.
6. Dimensional and vibration validation — reports cover boundary dimensions, radial internal clearance, and vibration/noise class where applicable.
7. Production release — after sample approval, series production starts under the same drawing control.

Design-for-Manufacture Guidance

Some requests fail at the drawing stage because the tolerance or section is outside what the process can hold. A P4 tolerance is not a labeling choice; it is the outcome of additional grinding, honing, and superfinishing passes. A wall thickness below a workable minimum will distort during heat treatment, so thin rings and thin flanges need a material review. Through-hardened 100Cr6 can achieve high hardness but changes size during quench; carburizing is an alternative when a hard case and tough core are needed. For heavy duty bushings, material choice changes the DFM limits: steel bushings respond to heat treatment, while bronze bushings are usually machined to size and may rely on lubricant grooves. Cage pocket clearance must be matched to the cage material: steel and brass cages need more clearance than polyamide at the same temperature. Seal lip material limits depend on the elastomer, and the operating temperature range must be stated before a seal is selected.

Tooling, Sampling and Lead-Time Expectations

Tooling, first-article sampling, and lead time are confirmed per project after the drawing review. They are not quoted blind. A special cage or seal usually adds tooling; a change to bore type or outer ring geometry may require a dedicated fixture. Sampling includes a dimensional report and, for rolling bearings, vibration and noise data if specified. Production lead time then follows the sampling approval and any tooling correction.

Drawing Confidentiality, NDA Handling and Quality Assurance

Drawings and duty data are treated as controlled documents. An NDA is accepted before any detailed drawing exchange. During custom runs, in-process inspection follows ISO 9001, with final inspection against the agreed drawing and relevant standards such as ISO 492 for rolling bearing tolerances or ISO 286 for shaft and housing fits. Material and heat treatment records are retained for traceability.

Send Your Drawing or Sample for Review

Send the drawing, sample, or duty data. The engineering review returns a quotation within 24 hours, and the drawing approval step keeps the final part under the same revision control as the original request.

Bronze vs. Steel Bushings: Material Selection for Heavy-Duty Plain Bearings

Heavy-duty plain bearings fail more often from lubrication breakdown and edge loading than from compressive stress alone. Bronze bushings are generally specified where load is slow, oscillating or shock-loaded because the alloy deforms locally to spread contact stress and can embed hard particles. Through-hardened steel bushings are specified where thin-wall strength, dimensional stability under high static load, or compatibility with hardened shafts is the primary requirement. The decision starts with duty data, not just bore size.

Specification Snapshot

• Bronze bushing forms: wrapped CuSn8, sintered bronze, solid-lubricant JDB bronze, and bronze-backed SF-2 composite with PTFE liner.
• Steel bushing materials: through-hardened GCr15 / 100Cr6 bearing steel, AISI 440C stainless, AISI 316 stainless.
• Common dimensions: confirm d × D × L, press-fit interference and housing bore tolerance against the specific part; do not infer from catalog nominal size.
• Applicable standards: ISO 3547-1 / DIN 1494 for wrapped bronze, ISO 2795 / DIN 1850-3 for sintered bronze, ISO 286 for shaft and housing fits.
• Key selection parameters: load direction, shaft hardness, surface finish, speed, lubrication method, temperature range, corrosion exposure.

How Bronze Handles Heavy Load and Marginal Lubrication

Bronze is not simply a softer substitute for steel. Its value in heavy-duty service comes from conformability and embeddability. Under a misaligned or deflecting shaft, a bronze bushing wears in locally instead of scoring the shaft. Solid-lubricant JDB bronze bushings carry graphite plugs or solid lubricant pockets that release at the sliding interface, which helps in slow-speed, high-load positions where a hydrodynamic film never forms. For wrapped bronze, CuSn8 Wrapped Bronze Bushings — ISO 3547-1 / DIN 1494 retain oil in porosity or machined pockets for greased or oil-bath systems.

The trade-off is compressive strength. Bronze yields more than hardened steel at the same wall thickness, so housing support and interference fit must be designed carefully. For a heavily loaded pivot with reversing motion, bronze generally outlasts unhardened steel; against a soft shaft, steel may gall and seize.

When Through-Hardened Steel Bushings Are the Better Choice

Steel bushings in GCr15 / 100Cr6 or stainless grades suit applications where the bushing itself must act as a structural sleeve or where thin wall sections cannot tolerate bronze deformation. Hardened steel bushings also resist abrasive wear from hard shaft surfaces better than most bronze alloys, but they depend on a reliable lubricant film and accurate alignment. If lubrication is intermittent, a steel bushing running against a steel shaft is more likely to score or fret than a bronze bushing.

For corrosive washdown environments, AISI 316 stainless steel bushings avoid the galvanic corrosion risk of bronze against stainless structures, although PTFE-lined bronze-backed SF-2 bushings are an alternative when lubrication-free operation is required.

What to Send for a Heavy-Duty Bushing Review

Specify boundary dimensions d × D × L, the housing material and bore tolerance, shaft material and surface hardness, radial and axial loads, speed or oscillation angle, lubrication type and relubrication interval, and any misalignment or edge-loading condition. That allows a direct comparison between bronze alloy options and through-hardened steel instead of a generic “bronze vs steel” answer. The free engineering calculators on the site cover fits and clearance checks where standard data is already known.

Material and Market Context

Global bronze bushing demand is projected to rise from USD 1.2 billion in 2024 to USD 1.8 billion by 2033, a 5.0% CAGR, according to industry market data. That growth reflects ongoing use of bronze in heavy equipment, agricultural machinery and industrial pivots where lubrication access is limited.
