Spherical Roller Bearings · ISO 15 / GB/T 288 / DIN 635-2
ISO 5753-1 22200 Series Spherical Roller Bearings Specification
What ISO 5753-1 fixes, what it deliberately leaves to another document, its equivalents, and the dimensional table.
ISO 5753-1 tabulates the radial internal clearance of unmounted radial bearings by bore range and clearance group — C2, CN (normal, and usually left out of the designation), C3, C4 and C5. The clearance is measured before mounting; the interference fits used on the shaft and in the housing, plus any temperature difference across the bearing, consume part of it in service.
Standard
ISO 5753-1
Covers
Radial internal clearance
Does not fix
It is not a tolerance class and it is not a fit table: how much of the listed clearance survives mounting depends on the shaft and housing fits chosen to ISO 286, which the standard does not prescribe.
Equivalents
GB/T 4604.1 is the Chinese equivalent; the values for tapered-bore and for non-ball types are given in the standard's own separate tables.
Product

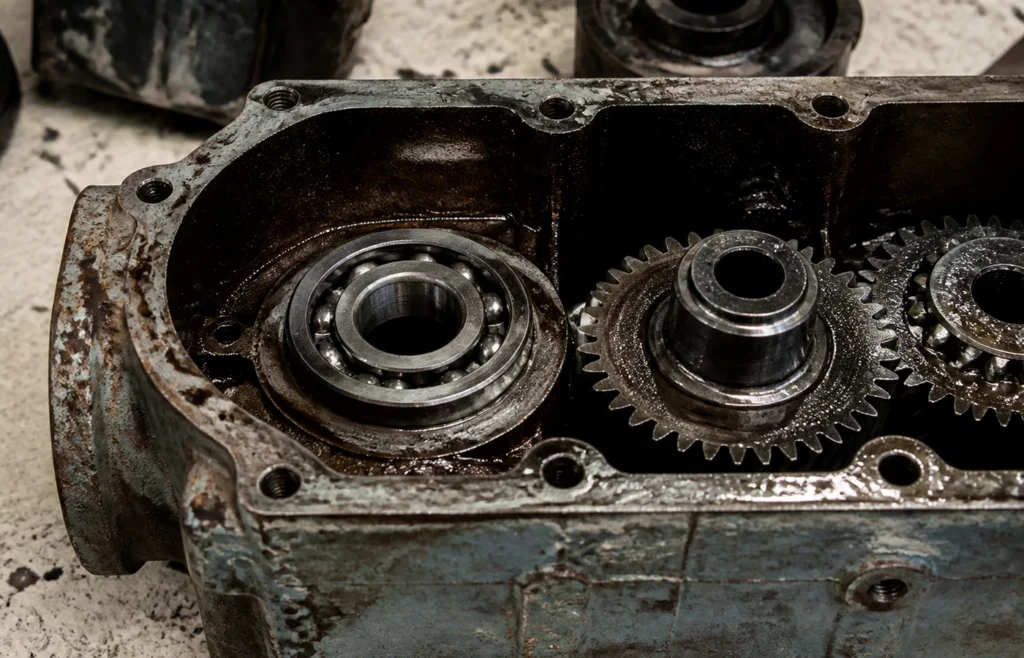

22200 Series Spherical Roller Bearings
Governing standards
ISO 15 / GB/T 288 / DIN 635-2
Equivalence between the ISO, DIN and GB/T documents is dimensional: a bearing made to either mounts in the same seat. It is not an equivalence of load rating, tolerance class or internal clearance, each of which is fixed by a separate standard and declared separately.
22200 Series Spherical Roller Bearings manufactured to ISO 5753-1 are tabulated below. The standard covers radial internal clearance — and reading it as though it covered anything else is the most common mistake made with a bearing standard, so the boundary of its scope is set out first.
ISO 5753-1 — Scope
ISO 5753-1 tabulates the radial internal clearance of unmounted radial bearings by bore range and clearance group — C2, CN (normal, and usually left out of the designation), C3, C4 and C5. The clearance is measured before mounting; the interference fits used on the shaft and in the housing, plus any temperature difference across the bearing, consume part of it in service.
What ISO 5753-1 Does Not Fix
It is not a tolerance class and it is not a fit table: how much of the listed clearance survives mounting depends on the shaft and housing fits chosen to ISO 286, which the standard does not prescribe.
This division of labour is the thing to carry away from any bearing standard. A boundary dimension standard makes bearings interchangeable; it does not make them equivalent. Two bearings of the same designation from different makers mount in the same seat and are not required to have the same load rating, the same internal design, the same cage or the same speed limit.
Dimensions Supplied to ISO 5753-1
Designation
Bore d (mm)
Outer diameter D (mm)
Width B (mm)
Chamfer r min (mm)
Permissible misalignment (deg)
22205
25
52
18
1.1
1.5
22206
30
62
20
1.1
1.5
22207
35
72
23
1.1
1.5
22208
40
80
23
1.1
1.5
22209
45
85
23
1.1
1.5
22210
50
90
23
1.1
1.5
22211
55
100
25
1.5
1.5
22212
60
110
28
1.5
1.5
22213
65
120
31
1.5
1.5
22214
70
125
31
1.5
1.5
22215
75
130
31
1.5
1.5
22216
80
140
33
2
1.5
22217
85
150
36
2
1.5
22218
90
160
40
2
1.5
22219
95
170
43
2.1
1.5
22220
100
180
46
2.1
1.5
22222
110
200
53
2.1
1.5
National Equivalents
GB/T 4604.1 is the Chinese equivalent; the values for tapered-bore and for non-ball types are given in the standard's own separate tables.
This product is supplied against ISO 15 / GB/T 288 / DIN 635-2, which names the documents it is made to.
Catalog Products Governed by ISO 5753-1
ISO 5753-1 governs more than this one series. In this catalog it applies to:
Customize the parameters below — every spec field is editable, and the drawing redraws to match the values you choose. Changing the designation snaps the other fields to that size's standard values; you can then override any individual value.
Sends the selected values to the quote form below.
Our facility
The numbers come off our own machines
Every ring is gauged for bore and outside diameter, every assembly for radial internal clearance to ISO 5753-1, and every finished bearing for vibration. That is why the values on this page are quotable rather than indicative.
Request a Quote
The form below follows the current technical drawing configuration. Change the drawing values above and the request details update automatically.
Dimensions & Specifications (ISO 15 / GB/T 288 / DIN 635-2)
Designation
Bore d (mm)
Outer diameter D (mm)
Width B (mm)
Chamfer r min (mm)
Permissible misalignment (deg)
22205
25
52
18
1.1
1.5
22206
30
62
20
1.1
1.5
22207
35
72
23
1.1
1.5
22208
40
80
23
1.1
1.5
22209
45
85
23
1.1
1.5
22210
50
90
23
1.1
1.5
22211
55
100
25
1.5
1.5
22212
60
110
28
1.5
1.5
22213
65
120
31
1.5
1.5
22214
70
125
31
1.5
1.5
22215
75
130
31
1.5
1.5
22216
80
140
33
2
1.5
22217
85
150
36
2
1.5
22218
90
160
40
2
1.5
22219
95
170
43
2.1
1.5
22220
100
180
46
2.1
1.5
22222
110
200
53
2.1
1.5
Video: ISO 5753-1 22200 Series Spherical Roller Bearings Specification
Third-party video, selected automatically for this topic. It is not produced by Bushing Bearings and is not a specification source — use the tables on this page for dimensional data.
Frequently Asked Questions
What does ISO 5753-1 specify?
ISO 5753-1 tabulates the radial internal clearance of unmounted radial bearings by bore range and clearance group — C2, CN (normal, and usually left out of the designation), C3, C4 and C5. The clearance is measured before mounting; the interference fits used on the shaft and in the housing, plus any temperature difference across the bearing, consume part of it in service.
What does ISO 5753-1 not cover?
It is not a tolerance class and it is not a fit table: how much of the listed clearance survives mounting depends on the shaft and housing fits chosen to ISO 286, which the standard does not prescribe.
What is the equivalent of ISO 5753-1?
GB/T 4604.1 is the Chinese equivalent; the values for tapered-bore and for non-ball types are given in the standard's own separate tables.
Does ISO 5753-1 mean two bearings are interchangeable?
Dimensionally, yes — that is what a boundary dimension standard is for, and a bearing of the same designation from any maker mounts in the same shaft and housing seat. Functionally, not necessarily: the load rating, the internal design, the cage, the clearance group and the speed limit are decided by the manufacturer and by other standards, and two bearings with the same number are not required to match on any of them.
